Modules Structure

Specifications

OpenDiS relies on a modular architecture: each functionality (e.g. force calculation, mobility law, post-processing analysis, etc.) is implemented as a module, exposed as a python class to the framework.

Below is a typical prototype for an OpenDiS module:

class MyModule:
    """ Prototype of an OpenDiS module """
    def __init__(self, state: dict, **kwargs) -> None:
        # do some initialization
        pass

    def Compute(self, N: DisNetManager, state: dict) -> dict:

        # Get dislocation network in module-specific format
        G = N.get_disnet(MyLibraryDisNet)

        # Perform some computations on the network
        nodevalues = compute_values(G, state)

        # Make some modifications to the network
        G, mymoduleflags = modify_network(G, state)

        # Update state dictionary
        state["nodevalues"] = nodevalues
        state["mymoduleflags"] = mymoduleflags

        return state

• Each method implemented in a module (e.g. the Compute() method) must adhere to the following specifications:

  • Receives a DisNetManager and the state dictionary as input arguments

  • Can perform computation(s) on the network

  • Can modify the network (e.g. topological operations)

  • Returns an updated state dictionary

• Special base modules such as Force calculation and Mobility law modules have additional specifications to guarantee consistency of the implementations:

  • Force calculations modules: see the CalForce_Base specification class.

  • Mobility law modules: see the MobilityLaw_Base specification class.

• Compatibility and inter-operability between modules is maintained via the two following objects:

  • DisNetManager: container class that allows for co-existence and conversion between various dislocation network data structures. This allows for different modules to use their own data structures to manipulate the networks. See DisNetManager class.

  • state: dictionary containing the global parameters (e.g. materials parameters, simulation settings, nodal forces, etc.) pertaining to the state of a simulation / analysis. Modules can communicate by writing/reading items into the state dictionary. See State Dictionary.

Building a simulation

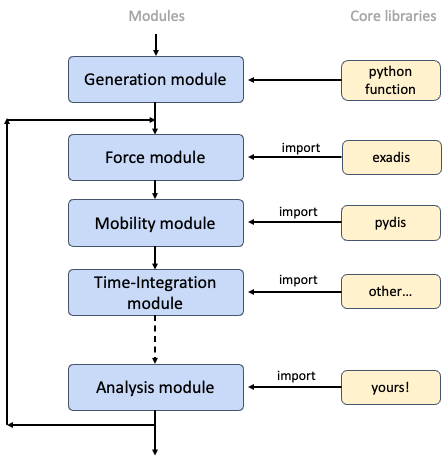

In the general sense, a simulation (or analysis pipeline) in OpenDiS can be constructed as a sequence of modules, e.g. as illustrated in the figure below:

where individual modules may come from different core libraries or implementations.

For running traditional DDD simulations, simulation drivers are provided in core libraries (e.g. see Simulation driver section). These drivers loop over a sequence of modules that define the traditional DDD cycle, e.g.

1. Force module

2. Mobility module

3. Time-integration module

4. Collision module

5. Topology module

6. Cross-slip module

7. Remesh module

8. Update stress module

9. Output module
